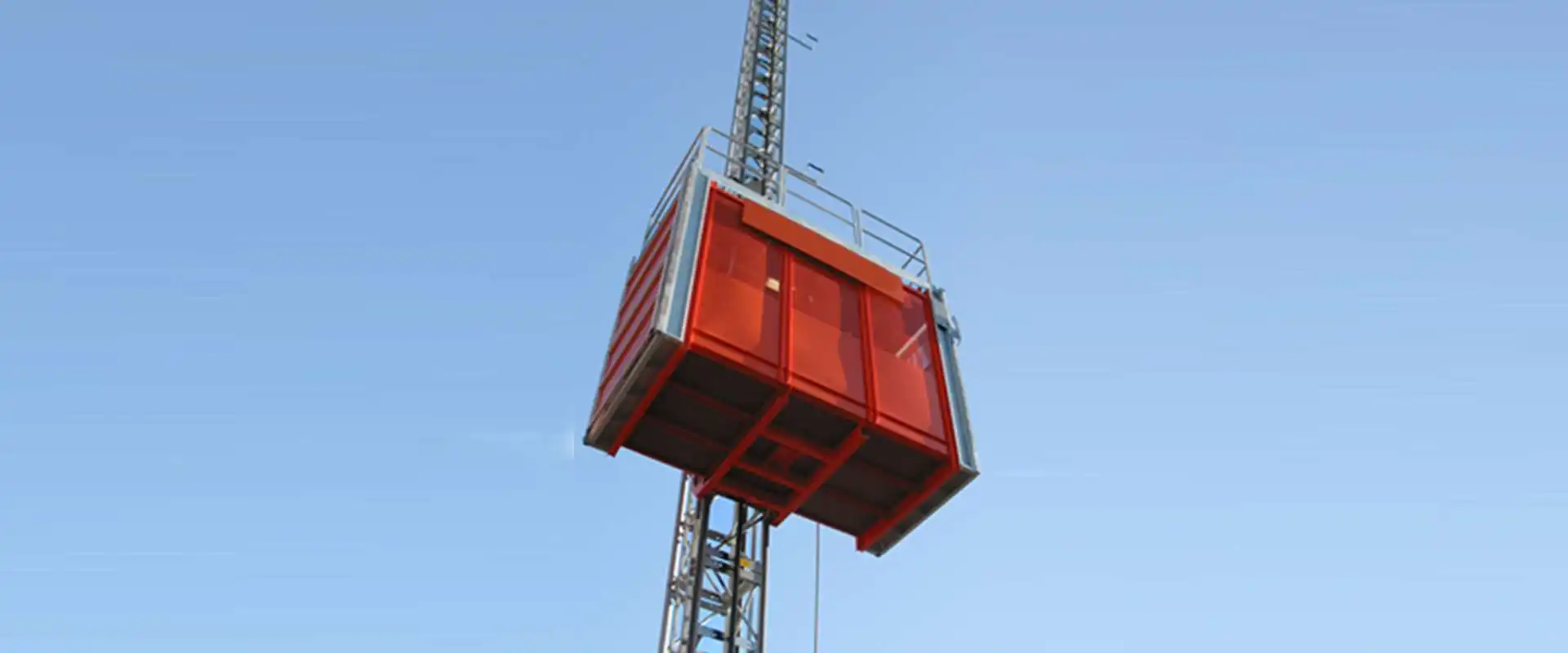

Industrial Platform Lift
Pak Elevator proudly introduces a new line of Industrial platform lift, model PEPLID, available in capacities of 250 KGs, 500 KGs, 750 KGs, 1000 KGs, and above. Our platform lift, including PEPLID 250, PEPLID 500, PEPLID 750, and PEPLID 1000, are designed to cater to a wide range of industrial requirements.
Platform Lift Models:
Model | Lifting Capacity in KGs | Required Power in KW | Speed (Meter/min) | Required Voltage and Hertz | Inside Net Platform (M2) | Ground to Top Landing Travel | Control from Platform | Warranty (Months) |
PEPLID 250 | 250 | 1 | 9 | 12, 24 V / 220, 380 V 50 Hz | 0.80 | Auto | Hold to Run | 15 |
PEPLID 500 | 500 | 1 | 9 | 220, 380 V 50 Hz | 1.30 | Auto | Hold to Run | 15 |
PEPLID 750 | 750 | 1.5 | 9 | 220, 380 V 50 Hz | 1.92 | Auto | Hold to Run | 15 |
PEPLID 1000 | 1000 | 2 | 9 | 220, 380 V 50 Hz | 2.66 | Auto | Hold to Run | 15 |
PEPLID 1500 | As Required | As Required | As Required | As Required | As Required | As Required | As Required | As Required |
Specification | PEPLID 250 | PEPLID 500 | PEPLID 750 | PEPLID 1000 | PEPLID 1500 |
Overall Sizes (mm) | |||||
Internal Platform Width | 800 | 1000 | 1200 | 1400 | As Required |
Internal Platform Depth | 1000 | 1300 | 1600 | 1900 | As Required |
External Platform Width | 900 | 1100 | 1300 | 1500 | As Required |
External Platform Depth | 1100 | 1400 | 1700 | 2000 | As Required |
Overall Required Space Width | 1150 | 1350 | 1600 | 1800 | As Required |
Overall Required Space Depth | 1250 | 1550 | 1850 | 2150 | As Required |
Clear Door Opening (Width) | 700 | 800 | 1000 | 1200 | As Required |
Door Opening Requirement (Width) | 750 | 850 | 1100 | 1300 | As Required |
Minimum Travel Height (mm) | 4000 | 4000 | 4000 | 4000 | As Required |
Maximum Travel Height (mm) | 10000 | 10000 | 10000 | 10000 | As Required |
Minimum Mast Section Height (mm) | 6000 | 6000 | 6000 | 6000 | As Required |
Maximum Mast Section Height (mm) | 120000 | 120000 | 120000 | 120000 | As Required |
Pit or Ramp Requirement (mm) | 100-200 | 100-200 | 100-200 | 100-200 | As Required |
Overall Space Requirement from Last Landing for Mast and Machine (mm) | 3000 | 3000 | 3000 | 3000 | As Required |
Overall Panels of Cabin and Shaft/Cage Height (mm) | 1000 | 1000 | 1000 | 1000 | As Required |
Industrial platform lift Key Features:
- Capacity: These models are available in a range of capacities, from 250 KGs to 1000 KGs and beyond, ensuring you find the perfect fit for your industrial needs.
- Robust Construction: All our platform lift is built with high-quality 1000 mm panels and walls, including a bottom cage/shaft, ensuring durability and safety.
- Door Options: We offer the flexibility of providing either three or two side door openings, allowing you to customize your platform lift as needed.
- Leader in Accessibility: Pak Elevator is a leader in the local market when it comes to providing accessible solutions.
- Quality and Safety: Our platform lift is meticulously designed to meet the highest quality and safety standards, ensuring the well-being of your operations and personnel.
- Innovative and Customizable: We are always open to innovations and can provide customized solutions tailored to your specific requirements. Flexibility and responsiveness are our top priorities.
